Automatic 457-610mm Width Adjust Non Insulated Steel Garage Door Panel Roll Forming Machine

Name: Automatic 457610mm Width Adjust Non Insulated Steel Garage Door Panel Roll Forming Machine
Brand: Sussman
Price: 15 USD

Wholesale Automatic 457-610mm Width Adjust Non Insulated Steel Garage Door Panel Roll Forming Machine from china suppliers

Brand Name : Sussman

Model Number : SM-SD-045

Certification : CE, SGS, ISO

Place of Origin : China

MOQ : 1 set

Price : USD 15,000 per set

Supply Ability : 5 sets per month

Delivery Time : 30-90 days

Packaging Details : standard film

Type : Non-Insulated Steel Sectional Door Panel Roll Forming Machine

Working speed : 8-10m/min

Motor Power : 11KW

Material : 0.5-0.8mm Thickness

Roller number : 30 rollers

Door panel size : 457-610mm adjustable

Contact Now

Automatic 457-610mm Width Adjust Non-Insulated Steel Garage Door Panel Roll Forming Machine

This machine is to make Non-Insulated steel garage door panels, the width from 457mm to 610mm adjustable automatically.

The lines includes 5 tons manual decoiler,manual pre-cutting device, garage door roll forming part, hydraulic cutting and finished table.

Technical Data:

	Items	Specifications
Material of coil	Material Thickness	0.5-0.8mm galvanized coils
	Un Coiler	5 tons manual
Forming system	Rolling Speed	About 10 meters /minute
	Roller Stations	About 30 stations
	Roller Material	No.45 steel coated with chrome
	Maim Motor Power	11 kw
	Motor cutting Power	4 kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC as list in the note
	Weight	About 8 tons
	Way Of Drive	1.2 inch chain

Machine List:

5 tons manual de-coiler	1 set
Manual pre-cutting	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Output table	2 units
Spare part	1 package
Safety cover	1 unit

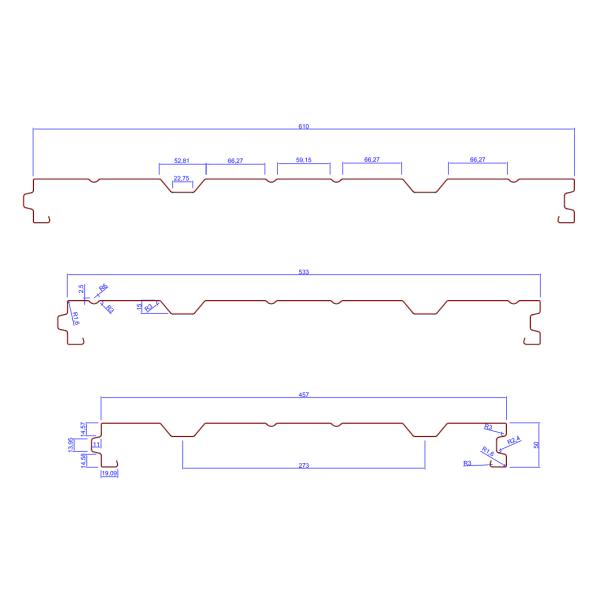

Profile Drawing:

The Case for Non-insulated Garage Doors

What is a Non-insulated Garage Door? A non insulated Garage door is a Garage door that is built using a single layer of steel and gives less protection from the elements than a garage door that is insulated.

Benefits of Non-Insulated Garage Doors

Built with a single layer of steel, Non insulated garage doors are less of an upfront financial investment. If you have a garage that is built separately from the home and live in a milder region where the climate doesn’t reach overly high or low temperatures a non-insulated garage door might be a viable option and save you money on building or remodeling costs. This can be a few hundred dollars you can put back in the bank or invest elsewhere.

Automatic 457-610mm Width Adjust Non Insulated Steel Garage Door Panel Roll Forming Machine
Application:

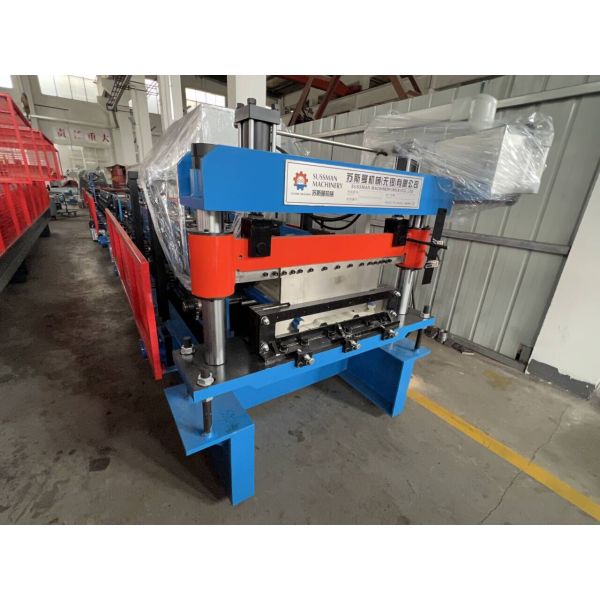

Machine photo
